Flexible Pump Coupling

Flexible Pump Coupling

Rokee® is Flexible Pump Coupling Supplier from China, Support Customization and Export, due to excellent quality, complete technical services and superior cost performance, Rokee® Flexible Pump Coupling have been serving more than 60 countries and regions in the world, effectively operating in many corners of the world.

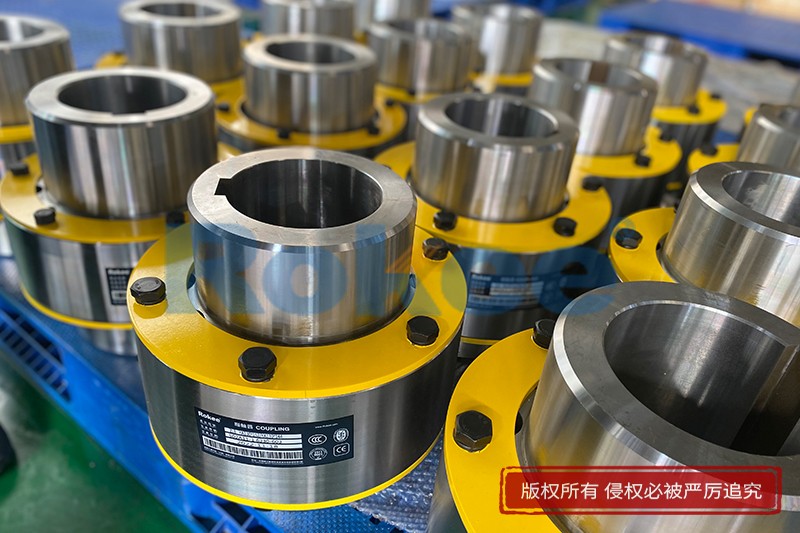

Flexible Pump Coupling is a coupling that allows for separate axial displacement of the rotor and allows for a certain deviation in the alignment of two connected rotors. Flexible pump coupling refers to the ability to compensate for the relative deviation of the axis of the two connected shafts.

In the realm of industrial machinery, the efficient and reliable transmission of power between rotating components is a fundamental requirement for operational success. Pumps, as critical equipment in numerous industrial, commercial, and municipal systems, rely heavily on couplings to connect their shafts to the driving power sources—typically electric motors or internal combustion engines. Among the various types of couplings available, flexible pump couplings have emerged as a preferred solution for addressing the inherent challenges of misalignment, vibration, and shock loads that often plague rotating machinery systems. Unlike rigid couplings, which demand precise alignment and offer no flexibility, flexible pump couplings are designed to accommodate minor to moderate misalignments while minimizing the transfer of harmful vibrations and absorbing shock.

To understand the significance of flexible pump couplings, it is first necessary to grasp the basic function of a coupling in a pump system. A coupling serves as a mechanical link between the drive shaft (from the motor or engine) and the driven shaft (of the pump), transmitting torque from the power source to the pump impeller. The primary objective is to ensure efficient power transfer while safeguarding both the pump and the drive unit from potential damage. In ideal conditions, the two shafts would be perfectly aligned—both radially (in the same plane) and axially (along the same centerline). However, in real-world installations, perfect alignment is nearly impossible to achieve and maintain. Factors such as thermal expansion and contraction of components, foundation settling, improper installation, and wear over time can all lead to misalignment. Rigid couplings, which are rigidly fixed to both shafts, cannot accommodate any misalignment. This misalignment creates excessive stress on the shafts, bearings, seals, and other components, leading to premature failure, increased energy consumption, and excessive noise and vibration. Flexible pump couplings address this critical issue by incorporating elastic or flexible elements that allow for relative movement between the two shafts, thereby mitigating the effects of misalignment and protecting the machinery.

The core working principle of flexible pump couplings revolves around the ability of their flexible elements to deform slightly under load, accommodating misalignment and absorbing vibrations. When torque is transmitted from the drive shaft to the coupling, the flexible elements transfer this torque to the driven shaft while compensating for any radial, axial, or angular misalignment between the two shafts. Radial misalignment occurs when the shafts are parallel but not concentric (i.e., their centerlines are offset). Axial misalignment (also known as end float) happens when the shafts are aligned concentrically but move along their axial direction relative to each other. Angular misalignment occurs when the shafts are not parallel, resulting in a slight angle between their centerlines. Many flexible couplings can accommodate a combination of these misalignment types, depending on their design and the material of the flexible element. Additionally, the flexible elements act as a buffer against shock loads—such as those caused by sudden starts, stops, or changes in operating conditions—by absorbing the impact and preventing it from being transmitted directly to the pump and drive unit. Vibration damping is another key function: the flexible material dissipates vibrational energy, reducing noise and minimizing the wear and tear on bearings and other precision components.

There are several common types of flexible pump couplings, each distinguished by their design, the material of the flexible element, and their performance characteristics. The selection of the appropriate type depends on factors such as the application requirements, the level of misalignment expected, the torque capacity, the operating speed, and the environmental conditions. Below are the most widely used types:

1. Jaw Couplings: Jaw couplings are one of the most popular types of flexible couplings for pump applications, renowned for their simplicity, cost-effectiveness, and ease of installation. They consist of two metal hubs (typically made of cast iron, steel, or aluminum) with protruding "jaws" around their circumference, and a flexible elastomeric spider (or insert) that fits between the jaws of the two hubs. The spider is the key flexible element, usually made of rubber, polyurethane, or nylon. When torque is applied, the jaws of the drive hub engage the spider, which then transfers the torque to the jaws of the driven hub. Jaw couplings can accommodate moderate angular and radial misalignments and provide good vibration damping. They are ideal for low to medium torque applications and are commonly used in centrifugal pumps, small industrial pumps, and HVAC systems. However, they have limited axial misalignment capacity and are not suitable for high-temperature or harsh chemical environments, as these can degrade the elastomeric spider.

2. Gear Couplings: Gear couplings are designed for high-torque, heavy-duty applications, making them suitable for large industrial pumps, such as those used in oil and gas, mining, and wastewater treatment. They consist of two gear hubs with external teeth that mesh with internal teeth on a sleeve (or two sleeves connected by a spacer). The flexible element is the meshing gear teeth, which allow for a small amount of angular and radial misalignment. Gear couplings require lubrication (usually grease or oil) to reduce friction and wear between the gear teeth. While they offer high torque capacity and durability, they provide less vibration damping than jaw couplings and are more complex to install and maintain. They are also sensitive to misalignment beyond their design limits, which can lead to premature wear.

3. Disc Couplings: Disc couplings are a type of flexible coupling that uses thin, flexible metal discs (or disc packs) as the flexible element. The discs are typically made of high-strength steel or titanium and are bolted between the two hubs. Unlike elastomeric couplings, disc couplings have no moving parts (other than the flexible discs) and do not require lubrication, making them low-maintenance and suitable for clean environments. They can accommodate angular, radial, and axial misalignments and provide excellent torque transmission with minimal backlash. Disc couplings are ideal for high-speed applications, such as in turbopumps, and are resistant to high temperatures and harsh chemicals. However, they are more expensive than jaw couplings and have limited damping capacity compared to elastomeric types. They are also more susceptible to damage from excessive misalignment or shock loads, as the metal discs can fatigue and crack over time if subjected to beyond their design limits.

4. Elastomeric Tire Couplings: Elastomeric tire couplings (also known as rubber tire couplings) use a cylindrical rubber or polyurethane tire as the flexible element, which is bonded or clamped between two metal flanges. The tire element provides excellent vibration damping and shock absorption, making them suitable for applications with high levels of vibration or frequent start-stop cycles. They can accommodate significant angular, radial, and axial misalignments and are resistant to dirt, moisture, and moderate chemical exposure. Elastomeric tire couplings are commonly used in centrifugal pumps, reciprocating pumps, and other industrial equipment where vibration control is critical. However, they have lower torque capacity compared to gear or disc couplings and are not suitable for high-temperature applications, as the rubber tire can degrade and lose flexibility at elevated temperatures.

5. Grid Couplings: Grid couplings consist of two hubs with cylindrical grooves and a flexible steel grid that fits into the grooves of both hubs. The grid is the flexible element, which transmits torque while accommodating angular and radial misalignments. Grid couplings require lubrication to reduce friction between the grid and the hubs, and they provide good vibration damping and shock absorption. They are suitable for medium to high-torque applications and are commonly used in pumps, compressors, and conveyors. However, they are more complex than jaw couplings and require regular maintenance to ensure proper lubrication and to inspect for grid wear or damage.

The adoption of flexible pump couplings offers numerous advantages over rigid couplings, contributing to improved system performance, reliability, and cost-effectiveness. One of the primary advantages is misalignment compensation. By accommodating radial, axial, and angular misalignments, flexible couplings reduce the mechanical stress on shafts, bearings, seals, and gaskets. This reduces the likelihood of premature component failure, extending the service life of the pump and drive unit. For example, bearings in a pump system with a rigid coupling and misaligned shafts may fail within months, whereas the same bearings with a properly selected flexible coupling can last for years.

Vibration damping and noise reduction are another significant benefit. Vibrations in rotating machinery can be caused by unbalanced rotating parts, misalignment, or operational irregularities. These vibrations not only generate noise but also accelerate wear on components and can even cause structural damage to the equipment or its foundation. The flexible elements in flexible couplings absorb and dissipate vibrational energy, reducing both vibration amplitude and noise levels. This creates a quieter, more stable operating environment and further extends the life of the machinery.

Shock load absorption is also a key advantage. Sudden starts, stops, or changes in load can generate shock loads that are transmitted through the drive train. These shock loads can cause damage to the pump impeller, motor windings, and other critical components. Flexible couplings act as a buffer, absorbing the impact of these shock loads and preventing them from being transferred to the pump and drive unit. This is particularly important in applications with frequent start-stop cycles, such as in municipal water supply systems where pumps are turned on and off based on demand.

Flexible pump couplings also simplify installation and maintenance. Unlike rigid couplings, which require precise alignment during installation (a time-consuming process that often requires specialized tools), flexible couplings can accommodate minor misalignments, reducing the installation time and effort. Additionally, many flexible couplings (such as jaw couplings) have replaceable flexible elements, allowing for easy maintenance without the need to disassemble the entire drive train. This reduces downtime and maintenance costs, as the flexible element can be replaced quickly and easily when it becomes worn or damaged.

Energy efficiency is another benefit of using flexible pump couplings. Misaligned shafts in a rigid coupling system create additional friction and resistance, which increases energy consumption. By accommodating misalignment and reducing friction, flexible couplings improve the efficiency of power transmission, reducing energy costs over the life of the system. While the energy savings per unit may be small, they can add up significantly in large industrial systems or in applications where pumps operate continuously.

Flexible pump couplings find applications in a wide range of industries and systems, thanks to their versatility and ability to address diverse operational challenges. Below are some of the key application areas:

1. Industrial Manufacturing: In manufacturing facilities, pumps are used for a variety of purposes, including cooling, lubrication, fluid transfer, and process heating. Flexible pump couplings are used in centrifugal pumps, reciprocating pumps, and gear pumps to connect them to electric motors or engines. For example, in automotive manufacturing, flexible couplings are used in coolant pumps to ensure reliable operation and reduce vibration, which is critical for maintaining the precision of manufacturing equipment.

2. Municipal Water and Wastewater Treatment: Municipal water supply systems rely on large pumps to transport water from treatment plants to distribution networks, while wastewater treatment plants use pumps to move sewage and treated water. These pumps often operate in harsh environments with varying loads and potential misalignment due to foundation settling. Flexible couplings (such as gear couplings and elastomeric tire couplings) are used to ensure reliable operation, reduce maintenance downtime, and protect the pumps from damage caused by misalignment and shock loads.

3. Oil and Gas Industry: The oil and gas industry uses a wide range of pumps, including centrifugal pumps, reciprocating pumps, and screw pumps, for exploration, production, refining, and transportation. These pumps operate under high pressure, high temperature, and high torque conditions, requiring robust and reliable couplings. Gear couplings and disc couplings are commonly used in this industry due to their high torque capacity and resistance to harsh environments. They help to ensure efficient power transmission and protect the pumps from damage caused by misalignment and shock loads associated with drilling and extraction operations.

4. HVAC Systems: Heating, ventilation, and air conditioning (HVAC) systems in commercial and residential buildings use pumps to circulate water or refrigerant. These pumps typically operate at low to medium speeds and require quiet operation. Jaw couplings and elastomeric tire couplings are ideal for HVAC applications due to their good vibration damping and noise reduction properties. They also simplify installation and maintenance, which is important for building maintenance teams.

5. Mining and Minerals Processing: Mining operations use large pumps to transport water, slurry, and other materials. These pumps operate in harsh, dusty environments with high loads and potential misalignment due to the mobile nature of some mining equipment. Flexible couplings such as grid couplings and gear couplings are used to handle the high torque requirements and accommodate misalignment, ensuring reliable operation in these demanding conditions.

6. Agriculture: Agricultural applications use pumps for irrigation, water supply, and chemical transfer. These pumps are often exposed to outdoor environments with varying temperatures and potential misalignment due to portable installation. Elastomeric tire couplings and jaw couplings are commonly used in agricultural pumps due to their durability, resistance to dirt and moisture, and ease of maintenance.

Proper maintenance of flexible pump couplings is essential to ensure their optimal performance and longevity, as well as to protect the pump and drive unit from damage. Below are some key maintenance practices:

1. Regular Inspection: Regular visual inspections of the coupling should be performed to check for signs of wear, damage, or misalignment. For elastomeric couplings (such as jaw couplings and elastomeric tire couplings), inspect the flexible element for cracks, tears, hardening, or degradation. For gear couplings and grid couplings, check for lubricant leaks, wear on the gear teeth or grid, and loose fasteners. For disc couplings, inspect the discs for cracks, fatigue, or distortion. Additionally, check for signs of excessive vibration, noise, or overheating, which can indicate coupling problems.

2. Proper Lubrication: Gear couplings, grid couplings, and some other types of flexible couplings require regular lubrication to reduce friction and wear. The type of lubricant (grease or oil) and the lubrication interval should be in accordance with the manufacturer's recommendations. Over-lubrication or under-lubrication can both cause problems—over-lubrication can lead to overheating, while under-lubrication can result in excessive wear and premature failure. It is also important to ensure that the lubricant is compatible with the coupling materials and the operating environment (e.g., high temperature, chemical exposure).

3. Alignment Checks: While flexible couplings can accommodate misalignment, excessive misalignment beyond their design limits can lead to premature wear and failure. Regular alignment checks (using tools such as dial indicators or laser alignment tools) should be performed to ensure that the shafts are within the acceptable misalignment range. Alignment should be checked during installation, after any maintenance work, and periodically during operation (especially if the equipment is subject to foundation settling or thermal expansion).

4. Replacement of Worn Components: Flexible elements (such as spider inserts, rubber tires, grids, and discs) are wear components and will eventually need to be replaced. It is important to replace these elements before they fail completely, as a failed flexible element can lead to misalignment, vibration, and damage to the pump and drive unit. When replacing components, use parts that are compatible with the coupling model and manufacturer's specifications to ensure proper fit and performance.

5. Environmental Protection: In harsh environments (e.g., high temperature, humidity, chemical exposure, dust, or debris), it is important to protect the coupling from damage. This can be done by installing protective covers or shields to prevent debris from entering the coupling and causing wear. Additionally, in corrosive environments, using couplings made from corrosion-resistant materials (such as stainless steel) or applying protective coatings can extend their service life.

6. Torque Check of Fasteners: The fasteners (bolts, nuts, screws) that hold the coupling together can loosen over time due to vibration. Regular torque checks should be performed to ensure that the fasteners are tightened to the manufacturer's recommended torque values. Loose fasteners can cause misalignment, vibration, and damage to the coupling and shafts.

In conclusion, flexible pump couplings play a critical role in ensuring the efficient, reliable, and safe operation of pump systems across a wide range of industries. By accommodating misalignment, damping vibrations, absorbing shock loads, and simplifying installation and maintenance, they contribute to improved system performance, extended equipment life, and reduced operational costs. The selection of the appropriate type of flexible coupling depends on the specific application requirements, including torque capacity, operating speed, misalignment levels, and environmental conditions. Proper maintenance—including regular inspection, lubrication, alignment checks, and replacement of worn components—is essential to maximize the performance and longevity of flexible pump couplings. As industrial systems continue to evolve and demand higher levels of efficiency and reliability, the importance of flexible pump couplings in optimizing pump performance will only continue to grow. Whether in municipal water treatment plants, oil and gas refineries, manufacturing facilities, or HVAC systems, flexible pump couplings remain an indispensable component of modern rotating machinery systems.
