XL Star Shaped Elastic Coupling

In the realm of mechanical transmission systems, couplings serve as critical components that connect two shafts to transmit power while accommodating various forms of misalignment. Among the diverse types of couplings available, the XL star shaped elastic coupling has emerged as a preferred choice in numerous industrial applications due to its unique combination of flexibility, reliability, and cost-effectiveness.

Structural Characteristics of XL Star Shaped Elastic Coupling

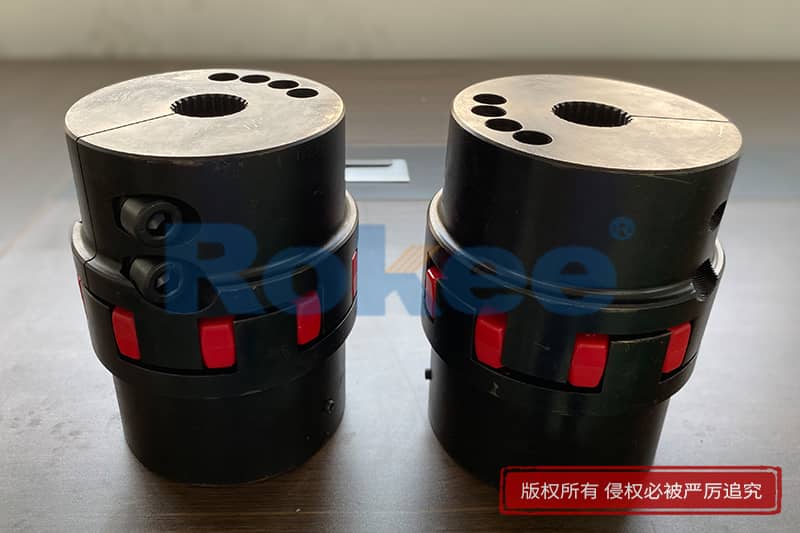

The XL star shaped elastic coupling is a type of flexible coupling characterized by its distinctive star-shaped elastic element, which serves as the core component responsible for power transmission and misalignment compensation. Its basic structure consists of three main parts: two metal hubs, a star-shaped elastic body, and in some cases, auxiliary connecting bolts or pins. Each component is meticulously designed to work in harmony, ensuring efficient power transfer and prolonged service life.

The metal hubs are typically manufactured from high-strength materials such as carbon steel, alloy steel, or aluminum alloy. The choice of material depends on the specific application requirements, including the transmitted torque, operating speed, and environmental conditions. Carbon steel hubs are widely used for general industrial applications due to their excellent mechanical strength and cost-effectiveness, while alloy steel hubs are preferred for high-torque and high-speed applications where superior durability is essential. Aluminum alloy hubs, on the other hand, are suitable for lightweight applications that require reduced inertia, such as in some precision machinery.

The inner bore of the metal hubs is usually processed with keyways, splines, or taper bores to ensure a secure connection with the driving and driven shafts. Keyway connections are the most common, as they provide a simple and reliable means of transmitting torque. Spline connections, however, offer higher torque-carrying capacity and better centering accuracy, making them ideal for applications with high dynamic loads. Taper bore connections are often used in situations where quick and easy assembly and disassembly are required.

The star-shaped elastic body, also known as the star pad, is the defining feature of this coupling. It is typically made from elastic materials such as natural rubber, synthetic rubber (e.g., nitrile rubber, neoprene, silicone rubber), or polyurethane. These materials possess excellent elasticity, wear resistance, and damping properties, which are crucial for absorbing vibration, compensating misalignment, and reducing noise. The star-shaped design features multiple lobes (usually three, four, or six) that fit into corresponding grooves on the metal hubs. This lobed structure ensures a large contact area between the elastic body and the hubs, enabling efficient torque transmission while allowing for a certain degree of deformation to accommodate misalignment.

The auxiliary connecting components, such as bolts and nuts, are used to fasten the two metal hubs together with the elastic body in between. These fasteners are typically made from high-strength steel and are designed to withstand the axial and radial forces generated during operation. Some XL star shaped elastic couplings also feature safety pins or shear bolts, which act as overload protection devices. In the event of excessive torque, these components will shear off, preventing damage to the coupling and other critical parts of the transmission system.

Working Principle of XL Star Shaped Elastic Coupling

The working principle of the XL star shaped elastic coupling revolves around the interaction between the metal hubs and the star-shaped elastic body. When the driving shaft rotates, it transmits torque to the corresponding metal hub. The torque is then transferred from the hub to the star-shaped elastic body through the contact between the hub grooves and the elastic body lobes. The elastic body, in turn, transmits the torque to the other metal hub, which drives the driven shaft to rotate. This process ensures a smooth and efficient transfer of power from the driving source to the load.

One of the key functions of the XL star shaped elastic coupling is to accommodate various types of shaft misalignment, which is inevitable in most mechanical systems due to factors such as manufacturing errors, installation deviations, thermal expansion, and load-induced deformation. The elastic body's flexibility allows it to deform slightly, thereby compensating for three main types of misalignment: axial misalignment (relative movement of the shafts along their axial direction), radial misalignment (offset of the shaft axes), and angular misalignment (tilt of the shaft axes relative to each other).

When axial misalignment occurs, the elastic body's lobes compress or stretch along the axial direction, absorbing the relative movement between the two shafts. For radial misalignment, the elastic body deforms radially, allowing the hubs to move slightly relative to each other without affecting torque transmission. In the case of angular misalignment, the elastic body undergoes a torsional deformation, accommodating the tilt between the two shafts. The degree of misalignment that can be compensated for depends on the material and design of the elastic body, as well as the size of the coupling.

Another important working principle of the XL star shaped elastic coupling is vibration damping. During operation, mechanical systems often generate vibrations due to unbalanced rotating parts, uneven load distribution, or other factors. These vibrations can cause noise, reduce the service life of components, and affect the overall performance of the system. The elastic body of the coupling acts as a damping element, absorbing and dissipating vibrational energy. The material properties of the elastic body, such as its modulus of elasticity and damping coefficient, determine the coupling's ability to dampen vibrations. Rubber and polyurethane elastic bodies are particularly effective in this regard, making the XL star shaped elastic coupling suitable for applications where vibration reduction is a priority.

Key Advantages of XL Star Shaped Elastic Coupling

The XL star shaped elastic coupling offers a multitude of advantages that make it a versatile and reliable choice for various industrial applications. These advantages stem from its unique structural design and the properties of its components, and they include the following:

First and foremost, it provides excellent flexibility and misalignment compensation capabilities. As mentioned earlier, the star-shaped elastic body allows the coupling to accommodate axial, radial, and angular misalignment, reducing the stress on the shafts, bearings, and other transmission components. This flexibility is particularly beneficial in applications where precise alignment is difficult to achieve or maintain, such as in heavy machinery, conveyor systems, and agricultural equipment.

Secondly, the XL star shaped elastic coupling exhibits superior vibration damping and noise reduction performance. The elastic body absorbs vibrational energy, minimizing the transmission of vibrations from the driving shaft to the driven shaft and vice versa. This not only reduces noise levels in the workplace but also protects sensitive components such as motors, pumps, and gearboxes from damage caused by excessive vibration. In addition, the damping effect helps to stabilize the operation of the transmission system, improving overall performance and reliability.

Thirdly, it features a simple and compact structure, which makes it easy to install, disassemble, and maintain. The coupling consists of only a few components, and there are no complex assembly procedures required. This simplicity reduces installation time and costs, and it also facilitates quick replacement of the elastic body when it becomes worn or damaged. Unlike some other types of couplings, the XL star shaped elastic coupling does not require regular lubrication, which further simplifies maintenance and reduces operating costs.

Fourthly, the XL star shaped elastic coupling has a high torque-carrying capacity relative to its size and weight. The large contact area between the elastic body lobes and the hub grooves ensures efficient torque transmission, allowing the coupling to handle a wide range of torque requirements. This makes it suitable for both low-torque precision applications and high-torque heavy-duty applications. Additionally, the use of high-strength materials for the metal hubs enhances the coupling's durability and load-bearing capacity.

Fifthly, it is cost-effective. The simple structure, use of readily available materials, and low maintenance requirements make the XL star shaped elastic coupling an economical choice compared to other types of flexible couplings, such as disc couplings or gear couplings. Despite its lower cost, it still offers excellent performance and reliability, making it a popular choice for small and medium-sized enterprises as well as large industrial facilities.

Finally, the XL star shaped elastic coupling is resistant to a wide range of environmental conditions. The elastic body materials can be selected based on the operating environment, ensuring resistance to oil, grease, chemicals, high temperatures, and low temperatures. For example, nitrile rubber is resistant to oil and grease, making it suitable for applications in the automotive and hydraulic industries, while silicone rubber can withstand high temperatures, making it ideal for use in industrial ovens or other high-temperature environments.

Typical Applications of XL Star Shaped Elastic Coupling

Due to its numerous advantages, the XL star shaped elastic coupling finds applications in a wide range of industries and mechanical systems. Its versatility makes it suitable for both general industrial use and specialized applications. Some of the typical applications are as follows:

In the manufacturing industry, the XL star shaped elastic coupling is widely used in machine tools, such as lathes, milling machines, drilling machines, and grinders. These machines require precise power transmission and vibration damping to ensure the accuracy of the machined parts. The coupling's ability to compensate for misalignment and reduce vibration makes it an ideal choice for these applications. It is also used in conveyor systems, which are commonly found in factories and warehouses for transporting materials. Conveyor systems often experience misalignment due to the long length of the shafts and the uneven distribution of the load, and the XL star shaped elastic coupling can effectively accommodate this misalignment, ensuring smooth operation.

The automotive industry is another major user of the XL star shaped elastic coupling. It is used in various components of automobiles, such as the transmission system, drive shaft, and auxiliary equipment (e.g., water pumps, air compressors). In the transmission system, the coupling helps to transmit torque from the engine to the gearbox while absorbing vibrations and accommodating misalignment. The oil-resistant properties of some elastic body materials make the coupling suitable for use in the automotive transmission system, where it is exposed to oil and grease.

In the agricultural industry, the XL star shaped elastic coupling is used in agricultural machinery such as tractors, harvesters, and irrigation pumps. Agricultural machinery often operates in harsh environments with uneven terrain, which can cause significant misalignment and vibration. The coupling's flexibility and vibration damping capabilities help to protect the machinery's components and ensure reliable operation. Additionally, the simple structure and low maintenance requirements of the coupling make it suitable for use in remote agricultural areas where maintenance facilities are limited.

The pump and fan industry also relies heavily on the XL star shaped elastic coupling. Pumps and fans are widely used in industrial, commercial, and residential applications for fluid transfer and air circulation. These devices often generate vibrations during operation, which can affect their performance and service life. The XL star shaped elastic coupling helps to dampen these vibrations and accommodate misalignment between the motor and the pump or fan shaft, ensuring efficient and reliable operation. It is used in various types of pumps, including centrifugal pumps, reciprocating pumps, and diaphragm pumps, as well as in axial flow fans, centrifugal fans, and blowers.

Other applications of the XL star shaped elastic coupling include renewable energy systems (e.g., wind turbines, solar tracking systems), marine equipment (e.g., ship propulsion systems, auxiliary machinery), and precision instrumentation (e.g., laboratory equipment, medical devices). In wind turbines, the coupling is used to connect the generator to the gearbox, transmitting torque while absorbing vibrations and accommodating misalignment caused by wind loads. In precision instrumentation, the coupling's low inertia and precise torque transmission capabilities make it suitable for use in applications where accuracy is critical.

Maintenance Considerations for XL Star Shaped Elastic Coupling

Although the XL star shaped elastic coupling is relatively easy to maintain, proper maintenance is essential to ensure its optimal performance and prolonged service life. The following are some key maintenance considerations:

Regular inspection is the first and most important maintenance task. It is recommended to inspect the coupling regularly (e.g., monthly or quarterly, depending on the operating conditions) for signs of wear, damage, or misalignment. During inspection, check the elastic body for cracks, tears, or excessive deformation. If the elastic body is worn or damaged, it should be replaced immediately to avoid affecting the coupling's performance and causing damage to other components. Also, check the metal hubs for signs of wear, corrosion, or deformation, and inspect the connecting bolts and nuts for tightness. Loose bolts can cause excessive vibration and misalignment, so they should be tightened if necessary.

Proper installation is crucial for the performance and service life of the XL star shaped elastic coupling. During installation, ensure that the shafts are aligned as accurately as possible. Although the coupling can accommodate misalignment, excessive misalignment can increase the stress on the elastic body and reduce its service life. Use appropriate alignment tools (e.g., dial indicators) to check the axial, radial, and angular misalignment, and adjust the shafts to within the coupling's recommended misalignment limits. Also, ensure that the keyway or spline connection between the hub and the shaft is secure, and that the bolts are tightened to the recommended torque.

Selection of the appropriate elastic body material is also an important maintenance consideration. The material should be selected based on the operating environment, including temperature, humidity, and exposure to chemicals or oil. Using the wrong material can lead to premature wear or failure of the elastic body. For example, if the coupling is used in an environment with high temperatures, a silicone rubber elastic body should be used instead of a natural rubber one, which has a lower temperature resistance.

Avoiding overload is another key maintenance practice. The XL star shaped elastic coupling is designed to handle a specific maximum torque. Exceeding this torque can cause the elastic body to fail, or the shear bolts (if present) to shear off. To avoid overload, ensure that the coupling is properly sized for the application, and that the load does not exceed the coupling's rated torque. If the application involves variable loads or shock loads, consider using a coupling with a higher torque rating or additional overload protection devices.

Proper storage of spare parts is also important. If spare elastic bodies or hubs are stored, they should be kept in a clean, dry, and cool environment to prevent deterioration. Avoid storing them in direct sunlight or in environments with high humidity, high temperatures, or exposure to chemicals. This will ensure that the spare parts are in good condition when they are needed.

Conclusion

The XL star shaped elastic coupling is a versatile and reliable component in mechanical transmission systems, offering a unique combination of flexibility, vibration damping, and cost-effectiveness. Its simple yet effective structural design, which consists of metal hubs and a star-shaped elastic body, enables it to accommodate various types of misalignment and transmit torque efficiently. The key advantages of this coupling, including easy installation and maintenance, high torque-carrying capacity, and resistance to harsh environmental conditions, make it suitable for a wide range of applications across industries such as manufacturing, automotive, agriculture, and renewable energy.

Proper selection, installation, and maintenance of the XL star shaped elastic coupling are essential to ensure its optimal performance and prolonged service life. By understanding its structural characteristics, working principles, and maintenance requirements, engineers and maintenance personnel can make informed decisions about the use of this coupling in their mechanical systems. As industrial technology continues to advance, the XL star shaped elastic coupling is expected to remain a key component in mechanical transmission systems, contributing to the efficiency, reliability, and sustainability of various industrial applications.
