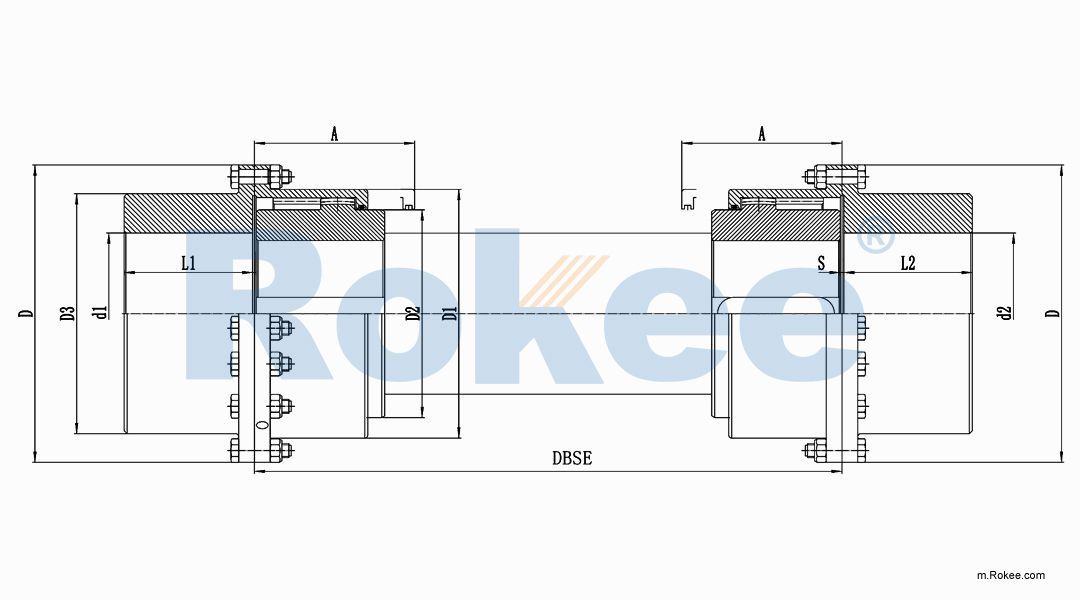

RODX Intermediate Shaft Drum Gear Coupling

RODX Drum Gear Coupling is an extended type of ROD series coupling with a floating shaft design in the middle, suitable for increasing transmission distance.

Model	Rated Torque	Maximum Torque	Maximum Speed	Basic Size								Weight	Weight of The Connecting Shaft (/100mm)	Rotational Inertia	Rotational Inertia of The Connecting Shaft (/100mm)	Grease Usage
Model	Nm	Nm	1/min	D	D1	D2	D3	d1-d2	L1-L2	S	A	Kg	Kg	J(Kgm²)	J(Kgm²)	Kg
RODX01	1900	3800	6000	110	82	68	82	14-56	43	3	53	24	2.2	0.018	0.0009	0.03
RODX02	3000	5940	4700	140	104	85	105	17-70	50	3	65	38	2.8	0.047	0.0019	0.06
RODX03	6200	12200	4400	170	127	106	130	20-90	62	3	80	62	4.5	0.117	0.0038	0.09
RODX04	9300	18400	4000	210	155	132	155	26-105	76	5	95	104	6.5	0.29	0.009	0.12
RODX05	15400	31000	3920	235	182	150	178	30-120	90	5	110	138	8.6	0.55	0.012	0.3
RODX06	25300	49600	3850	270	210	175	210	35-142	105	6	125	202	13.5	1.13	0.025	0.4
RODX07	38600	76400	3300	310	248	206	248	70-168	120	6	140	289	16.6	2.22	0.056	0.6
RODX08	48800	96500	2900	338	275	235	275	85-190	135	8	155	370	22.3	3.42	0.084	0.8
RODX09	75300	147800	2650	378	306	252	308	95-216	150	8	180	480	26.2	6.1	0.122	1.4
RODX10	93000	181400	2300	400	330	274	335	105-230	175	8	205	592	32	8.94	0.172	2.5
RODX11	166100	327200	2100	445	365	305	360	120-252	190	8	218	730	36.8	12.25	0.278	3.0
RODX12	226000	447000	1800	508	425	355	415	130-290	220	10	252	1048	54	25.04	0.522	4.5
RODX13	242000	480000	1550	540	465	368	430	140-292	250	16	300	1985	62	33.05	0.622	3.0
RODX14	275000	543000	1420	580	500	405	465	160-350	270	16	320	2460	68.5	50.5	0.902	3.6
RODX15	352000	696000	1300	648	546	450	510	170-380	290	16	340	3070	85	78.2	1.335	4.8
RODX16	440000	880000	1200	685	582	486	550	200-410	325	20	370	3700	95.2	107.5	1.711	5.0
RODX17	561000	1122000	1100	760	642	520	600	220-450	245	20	400	4255	105.8	150.2	2.159	9.0
RODX18	726000	1452000	1050	800	684	555	640	245-480	265	20	420	5003	125.3	201	3.03	9.8
RODX19	858000	1716000	990	840	720	590	690	275-520	400	20	450	5998	152.5	291.2	4.162	11.5
RODX20	1100000	2200000	930	920	760	640	742	300-560	410	25	490	7078	173.6	414.8	5.813	11.5
RODX21	1320000	2640000	870	990	844	704	800	325-600	430	25	520	8600	203.9	588.8	8.335	14.5
RODX22	1760000	3520000	820	1040	895	744	865	350-650	470	25	550	10003	241.5	809.4	11.345	23.0
RODX23	1980000	3960000	770	1142	970	810	905	375-680	500	30	600	11942	264.5	1091.5	13.61	23.0
RODX24	2090000	4180000	730	1185	1015	835	950	400-710	520	30	630	13162	284.8	1327	16.22	30.0
RODX25	2310000	4620000	680	1230	1060	870	1035	425-770	540	30	650	15720	322.6	1768.3	19.92	36.0
RODX26	2860000	5720000	650	1280	1130	928	1080	450-810	570	30	680	17220	376.5	2252.5	28.02	38.0
RODX27	4180000	8360000	580	1390	1240	1020	1200	475-900	600	30	725	20960	435	3315.6	36.55	46.0
RODX28	5962000	11924000	540	1550	1375	1130	1355	500-900	670	35	800	28990	562.2	5988.4	60.42	57.0
RODX29	7975000	15950000	480	1700	1560	1280	1500	525-1000	740	35	890	33506	695.6	7586.6	95.88	75.0
RODX30	9515000	19030000	400	1860	1685	1430	1650	575-1200	800	35	980	36460	832.5	9981.3	132.5	115.0
