RODU Brake Wheel Drum Gear Coupling

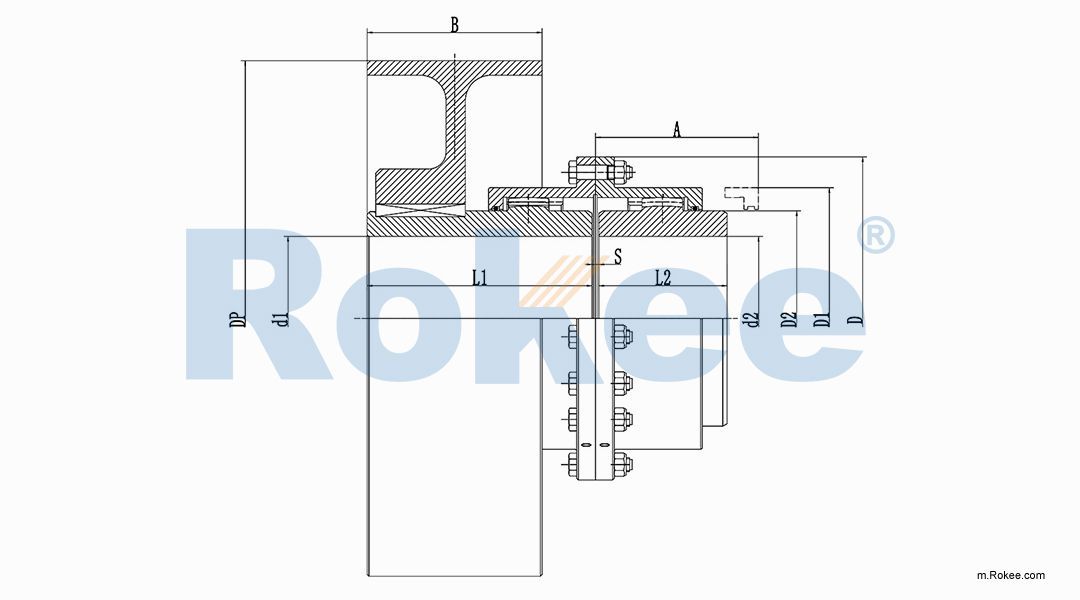

The RODU Drum Gear Coupling is another type of ROD series coupling with brake wheels, suitable for transmission situations where braking needs to be used in conjunction with wheel brakes and applied to one end of the axle, achieving smoother and more reliable braking performance.
| Model | Rated Torque | Maximum Torque | Maximum Speed | Basic Size | Weight | Rotational Inertia | Grease Usage | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nm | Nm | 1/min | DF | D | D1 | D2 | B | d1-d2 | L1 | L2 | S | A | Kg | J(Kgm²) | Kg | |
| RODU01 | 1900 | 3800 | 3000 | 200 | 110 | 82 | 68 | 75 | 14-50 | 105 | 43 | 3 | 56 | 11.2 | 0.041 | 0.03 |
| RODU02 | 3000 | 5940 | 3000 2500 2000 | 200 250 315 | 140 | 104 | 85 | 75 95 120 | 17-62 | 115 125 140 | 50 | 3 3 3 | 62 | 16.9 21.3 27.7 | 0.059 0.125 0.296 | 0.06 |
| RODU03 | 6200 | 12200 | 2500 2000 1800 1550 | 250 315 350 400 | 170 | 127 | 106 | 95 120 130 155 | 20-80 | 130 145 145 160 | 62 | 3 3 3 3 | 75 | 30.3 38.8 45.0 58.2 | 0.167 0.359 0.552 1.054 | 0.09 |
| RODU04 | 9300 | 18400 | 2000 1800 1550 | 315 350 400 | 210 | 155 | 132 | 120 130 155 | 26-98 | 155 155 170 | 76 | 5 5 5 | 90 | 55.0 60.6 75.5 | 0.460 0.672 1.188 | 0.12 |
| RODU05 | 15400 | 31000 | 2000 1800 1550 1400 | 315 350 400 450 | 235 | 182 | 150 | 120 130 155 175 | 30-112 | 155 155 170 180 | 90 | 5 5 5 5 | 105 | 65.7 71.3 88.3 106.6 | 0.54 0.74 1.26 2.10 | 0.3 |
| RODU06 | 25300 | 49600 | 1550 1400 1300 | 400 450 500 | 270 | 210 | 175 | 155 175 195 | 35-133 | 200 210 220 | 105 | 6 6 6 | 120 | 118.8 137.2 160.5 | 1.59 2.38 3.77 | 0.4 |
| RODU07 | 38600 | 76400 | 1300 1200 1100 | 500 560 630 | 310 | 248 | 206 | 195 200 245 | 70-158 | 220 220 250 | 120 | 6 6 6 | 135 | 177.9 193.4 238.8 | 4.15 4.93 9.15 | 0.6 |
| RODU08 | 48800 | 96500 | 1300 1200 1100 950 | 500 560 630 710 | 338 | 275 | 235 | 195 200 245 270 | 85-174 | 235 235 265 280 | 135 | 8 8 8 8 | 158 | 225.0 230.4 273.3 304.4 | 4.96 5.69 9.86 14.68 | 0.8 |
| RODU09 | 75300 | 147800 | 1200 1100 950 750 | 560 630 710 800 | 378 | 306 | 252 | 200 245 270 320 | 95-192 | 255 265 295 315 | 150 | 8 8 8 8 | 180 | 252.5 303.8 365.5 421.8 | 7.20 11.68 17.35 22.39 | 1.4 |
