RLAR单轴套反装金属膜片联轴器

单侧轴套反装设计,应用轴头距离受限的场合。

RLAR单轴套反装金属膜片联轴器

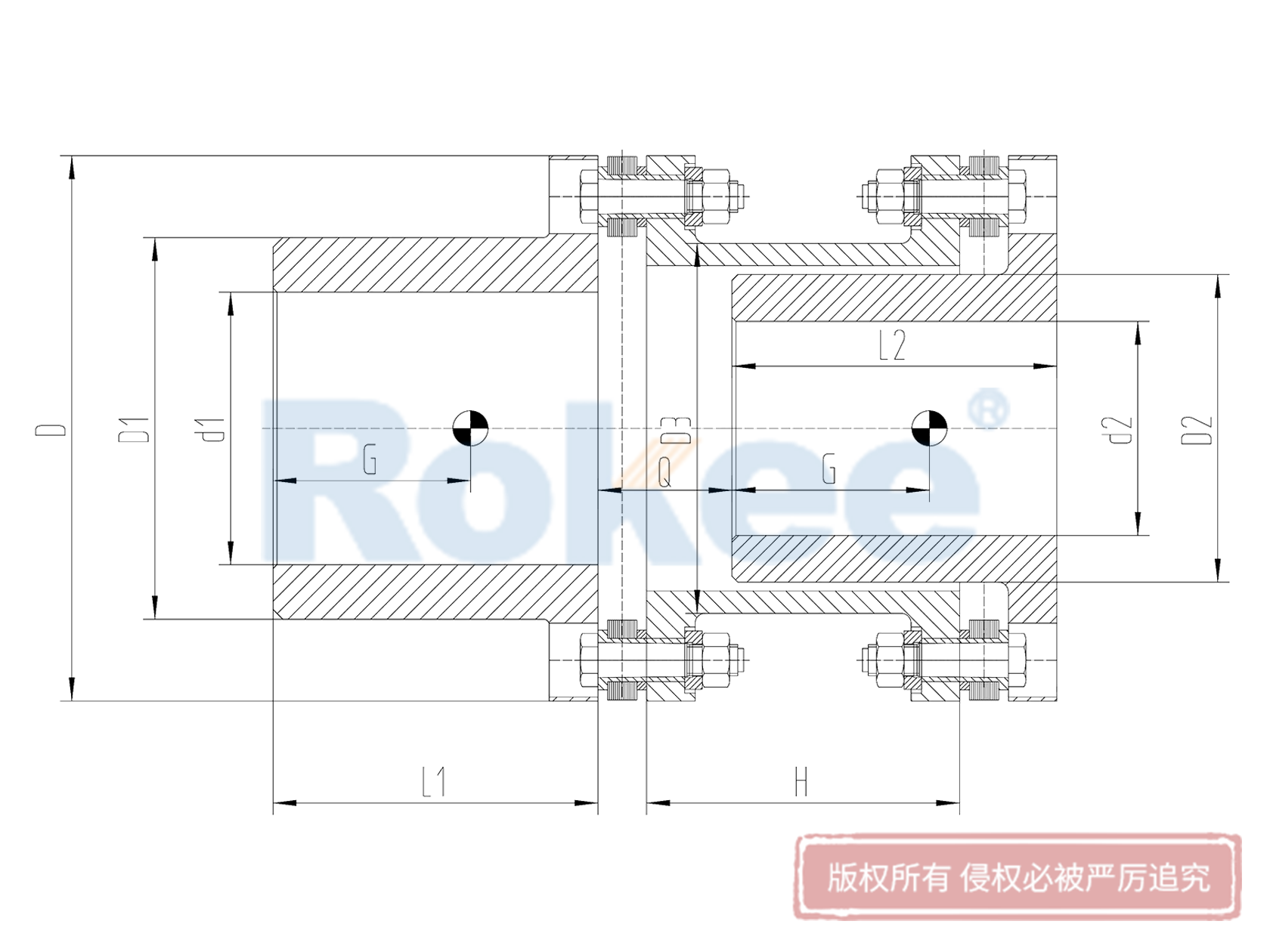

规格DD1/D2D3d1(max)d2(max)L2/L1
(标准/长系列)
Q
Min值
许用转速
(max)
公称转矩瞬时转矩
(max)
峰值转矩
(mm)(mm)(mm)(mm)(mm)(mm)(mm)n max(r/min)T(N.m)Tmax(N.m)Tmax(N.m)
RLAR115-611574/6568504060/110121400065018501290
RLAR135-613595/8582655580/110-1401211800118024781350
RLAR155-6155106/9496756590/1401510000210027802780
RLAR175-6178121/1081178575100/140-170158500358056007200
RLAR200-6200140/12712210085120/170-210157800500078008000
RLAR225-6225168/152144120105140/170-21015650085001320013200
RLAR235-6235161/152158120105140/170-21020580090001404014000
RLAR255-6255179/164171130110160/210-250205200135002106021600
RLAR280-6278165/182193145125170/210-250254350202503150031500
RLAR300-6300212/198230155135200/250253880305004750038500
RLAR325-6325235/219228170150200/250-300253500325007850061000
RLAR370-6365258/242269190165230/300303100420009580085000

规格质点G角向偏差轴向偏差中间接套H中间套
质量(米)
中间套
转动惯量
中间套扭转刚度质量扭转刚度转动惯量角向刚度轴向力
(mm)(±△º)(±△mm)标准/min(mm)kg/mJh(Kg.m²)Ct10E6(N.m/rad)(Kg)Ct10E6(N.m/rad)J(Kg.m²)N.m/degN
RLAR115-615.9/48.2
1.480/555.30.0050.05140.130.006200.8510
RLAR135-622.8/59.1
1.4100/558.820.0140.143630.140.013114.5830
RLAR155-624.8/65.70.67°1.4100/609.930.020.20311.920.20.025157.91070
RLAR175-627.9/75.11.4140/7511.490.0310.31417.180.440.0552271630
RLAR200-636/861.4140/7515.040.0550.57124.880.450.1203.31860
RLAR225-645.2/94.11.6140/7519.170.1151.17536.170.630.19147.91430
RLAR235-643.2/102.41.6140/8521.630.1061.06652.240.840.21198.12510
RLAR255-648.5/113.52180/9023.380.1461.48771.771.410.33526.43220
RLAR280-652.8/1232200/10030.210.2322.36194.831.440.51435.64550
RLAR300-665.8/137.82200/10032.970.3013.069131.631.380.73382.94860
RLAR325-662.2/143.52250/12544.120.494.989156.62.511.3533.36150
RLAR370-670.2/167.32250/14057.210.777.860 218.33.962.24707.68070

规格DD1/D2D3d1(max)d2(max)L2/L1
(标准/长系列)
Q
Min值
许用转速
(max)
公称转矩瞬时转矩
(max)
峰值转矩
(mm)(mm)(mm)(mm)(mm)(mm)(mm)n max(r/min)T(N.m)Tmax(N.m)Tmax(N.m)
RLAR203-8203148/13516490-110/14890140/170-21015800090001950014700
RLAR235-8235165/152164105-120/165105140/170-210207800135004780035900
RLAR255-8255177/165190110-130/177110160/210-250256600202506300047400
RLAR290-8290212/198199135-150/212135180/250256100305007350055400
RLAR340-8340250/235215160-180/250160200/250-3002552503250012200092500
RLAR370-8365264/250241170-190/264170210/250-30030425042000163000124000
RLAR400-8398277/257269175-200/277175250/300-25035390072000225000171000
RLAR430-8430315/293321200-230/315200250/350-41035358095000250000191000
RLAR480-8480346/327346220-250/346255250/350-410353200125000400000300000
RLAR530-8530393/374390255-290/393260300/350-410353000200000448000335000
RLAR600-8600440/420390290-320-440290350/410-470403000250000668000501000

规格质点G角向偏差轴向偏差中间接套H中间套
质量(米)
中间套
转动惯量
中间套扭转刚度质量扭转刚度转动惯量角向刚度轴向力
(mm)(±△º)(±△mm)标准/min(mm)kg/mJh(Kg.m²)Ct10E6(N.m/rad)(Kg)Ct10E6(N.m/rad)J(Kg.m²)N.m/degN
RLAR203-843.3/97.70.5°2140/7519.100 0.080.81124.500 0.990.12651.32240
RLAR235-841.9/104.42180/9025.20.1321.344382.230.2515334030
RLAR255-847.1/119.22.2200/100290.1781.8146.92.630.3614955930
RLAR290-859/124.65D2.4200/10032.800 0.3013.06871.000 3.450.7111306380
RLAR340-865.3/141.73.8250/12542.300 0.6026.123111.000 4.981.619997420
RLAR370-866.45/152.654.2252/14058.700 0.8338.485139.000 8.262.3333811350
RLAR400-874.48/1844.8300/15575.400 1.12911.509180.000 12.243.42843115380
RLAR430-880.09/179.585.2350/15579.850 1.58416.14215.500 14.234.92640116090
RLAR480-878.89/185.885.5350/180104.400 2.5726.183302.000 18.898.78635719330
RLAR530-898.68/212.796400/180132.84.2943.68240822.1714.537.8623110
RLAR600-8114.18/248.57450/205168.956.8770.03360731.3227.02847827310

规格DD1/D2D3d1(max)d2(max)L2/L1
(标准/长系列)
Q
Min值
许用转速
(max)
公称转矩瞬时转矩
(max)
峰值转矩
(mm)(mm)(mm)(mm)(mm)(mm)(mm)n max(r/min)T(N.m)Tmax(N.m)Tmax(N.m)
RLAR370-10365264/250241170-190/264170210/250-30030425042000163000124000
RLAR400-103982778257269175-200/277175250/300-25035390072000225000171000
RLAR430-10430315/293321200-230/315200250/350-41035358095000250000191000
RLAR500-10480346/327346220-250/346255250/350-410353200125000400000300000
RLAR530-10530393/374390255-290/393260300/350-410353000200000448000335000
RLAR600-10600440/420390290-320-440290350/410-470403000250000668000501000
RLAR760-10760525/475525375340500/470-520402100365000569400474500
RLAR860-10860585/518584420370520/570-600451850535000834600695500
RLAR950-10950658/592658470420570/600-6206014307200001123200936000

规格质点G角向偏差轴向偏差中间接套H中间套
质量(米)
中间套
转动惯量
中间套扭转刚度质量扭转刚度转动惯量角向刚度轴向力
(mm)(±△º)(±△mm)标准/min(mm)kg/mJh(Kg.m²)Ct10E6(N.m/rad)(Kg)Ct10E6(N.m/rad)J(Kg.m²)N.m/degN
RLAR370-866.45/152.650.25°2.8252/14058.700 0.66.13139.000 8.951.641374013650
RLAR400-874.48/1843300/15575.400 0.868.485180.000 12.242.343012017810
RLAR430-880.09/179.583.3350/15579.850 1.1311.509215.500 14.233.482675019330
RLAR480-878.89/185.883.7350/180104.400 1.5816.144310.000 37.3258.152900025300
RLAR530-898.68/212.794.2400/180132.82.5726.1842032.169.083340028290
RLAR600-8114.18/248.55.2450/205168.954.2943.6862539.9814.983765037500
RLAR760-10261.444 5.8265197.708 6.8770.63895.000 55.4228.024241044580
RLAR860-10267.654 5.8290284.050 7.9889.651105.125 68.7532.455467552870
RLAR950-10313.875 6.2290333.215 9.85101.231854.832 78.6537.656954068750
  • 该型号为RLA的衍生型号,应用于轴头距离较短的中低速使用场合。

  • 结构紧凑,但更换膜片组不方便,需要移开一端轴向位置,比较费时。

  • 具有较小的悬挂重量和较小的附加弯矩。

« RLAR单轴套反装金属膜片联轴器 » 发布于 2023年5月9日
